DEMO_GAMMATONE - Demo for gammatone.m

Description:

demo_gammatone demonstrates the usage of various Gammatone filter implementations in the AMT.


Gammatone IRs obtained with the gammatone implementation with the option classic (Patterson et al., 1987).

This figure shows IRs of Gammatone filters in 24 erb-spaced channels derived from gammatone with parameters classic and real (Patterson et al., 1987). Left panel shows the causalphase option. Right panel shows the peakphase option, which aligns the IRs to the maxima of the corresponding envelope maxima.

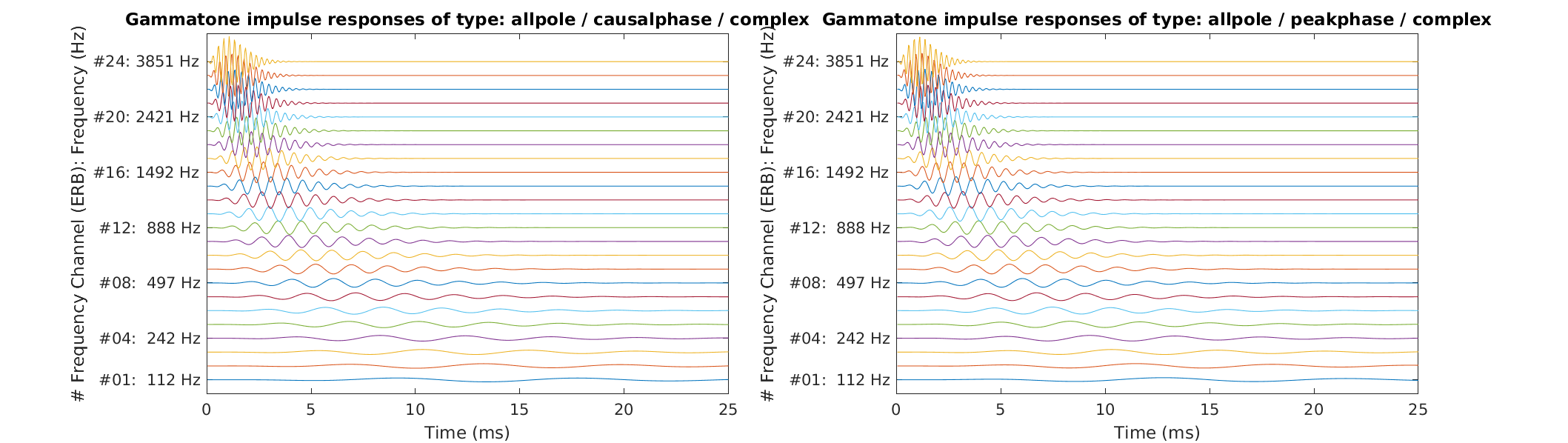

Gammatone IRs obtained with the gammatone implementation with the option complex (Hohmann, 2002).

This figure shows IRs of Gammatone filters in 24 erb-spaced channels derived from gammatone with parameters allpole and complex (Hohmann, 2002). Left panel shows the causalphase option. Right panel shows the peakphase option, which aligns the IRs to the maxima of the corresponding envelope maxima.

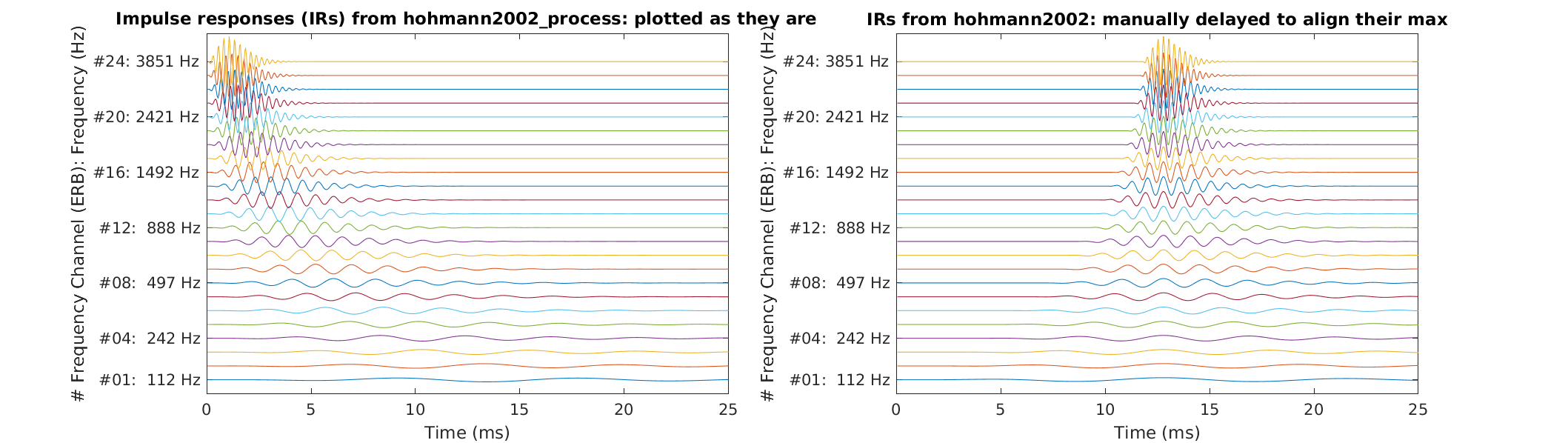

Gammatone IRs obtained with hohmann2002 corresponding to complex-valued allpole filters (Hohmann, 2002).

This figure shows IRs of Gammatone filters in 24 erb-spaced channels derived with hohmann2002 . This implementation corresponds to complex-valued allpole Gammatone filters (Hohmann, 2002). Left panel shows the IRs as output by hohmann2002_process, the right panel shows those IRs manually delayed such that their maxima are aligned across frequency channels.
