DEMO_LYON2011_COMPRESSIVEFUNCTIONS - compressive Input-Output (I/O) function of the CARFAC model

Description:

The I/O function of the 'cascade of asymmetric resonators with fast-acting compression' (CARFAC) modelis calculated by the RMS of the out in response tones at intensities from 10 to 100 dB SPL at the CFs of 0.5, 1, 2 and 4 kHz. The nonlinear compressive shape of the I/O function represents the cochlear mechanical compression.

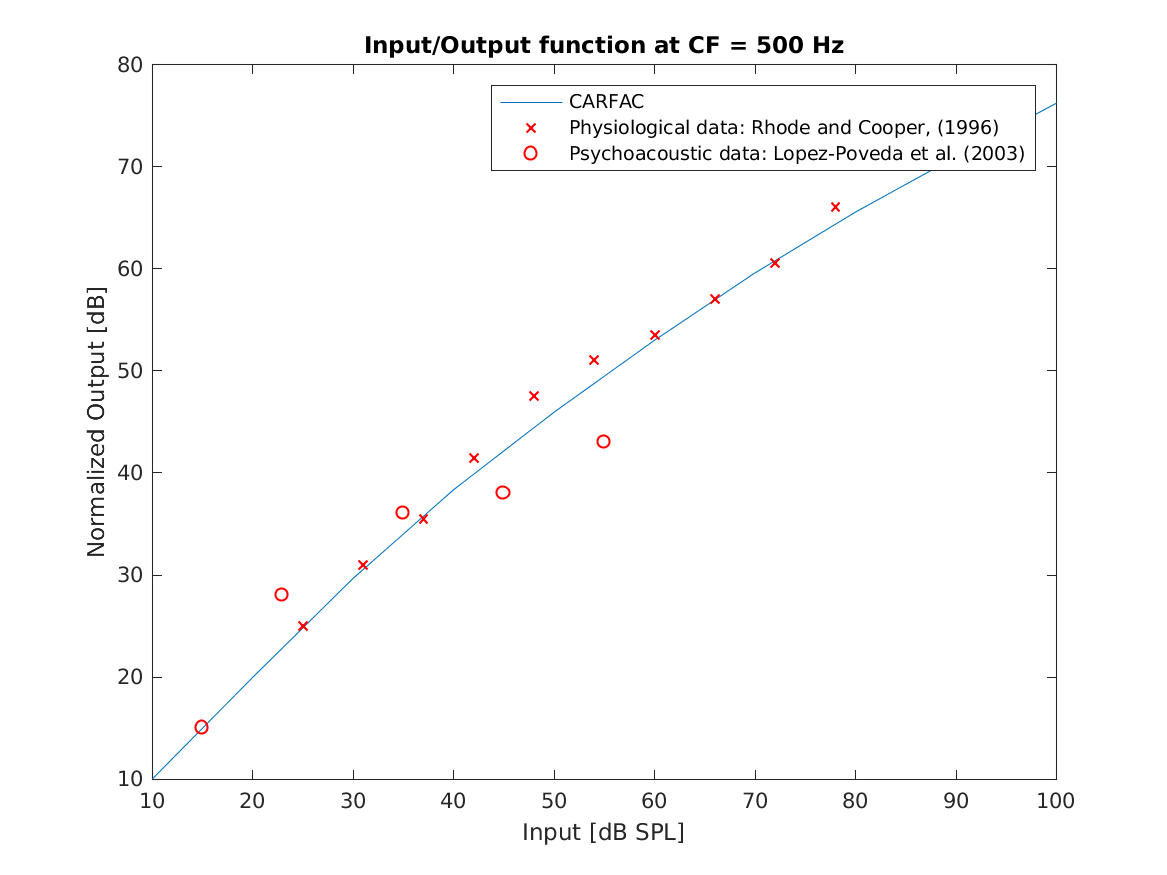

The Input-Output (I/O) functions at a center frequency of 500 Hz

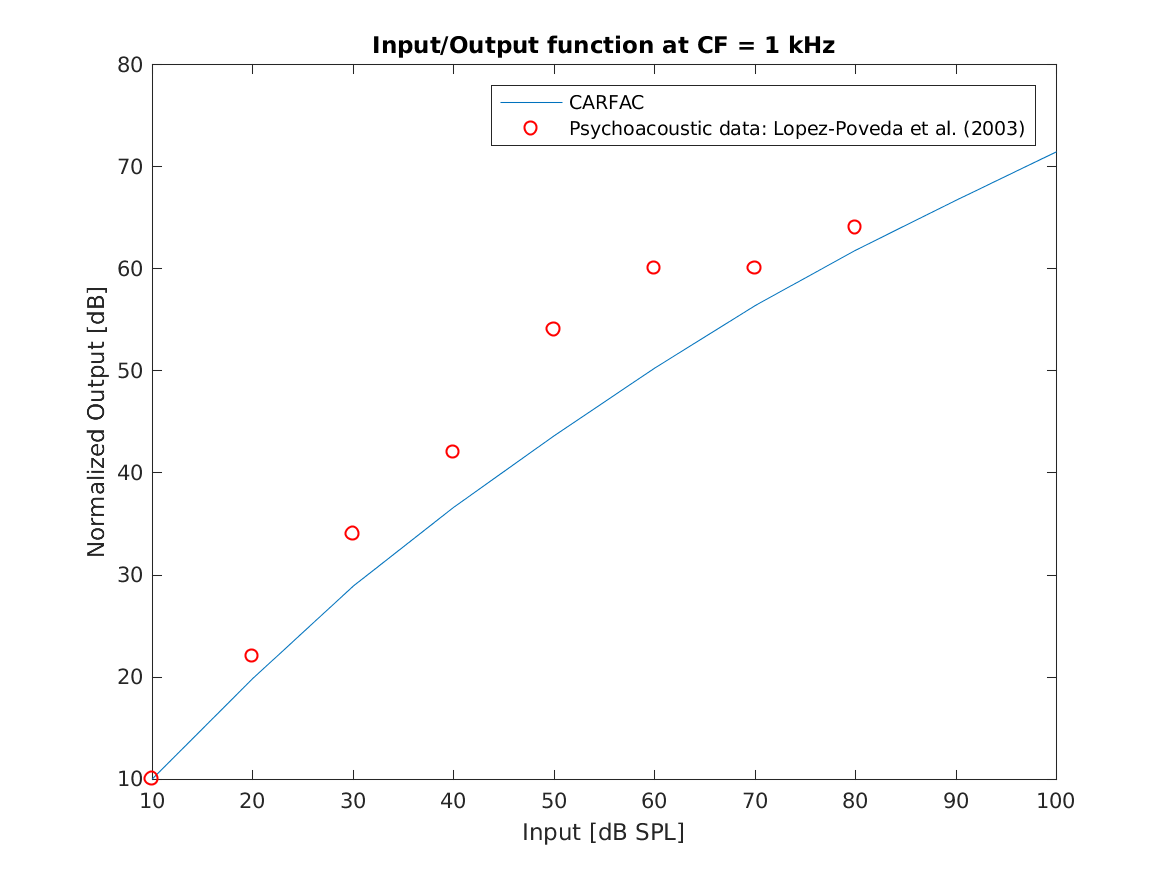

The Input-Output (I/O) functions at a center frequency of 1 kHz

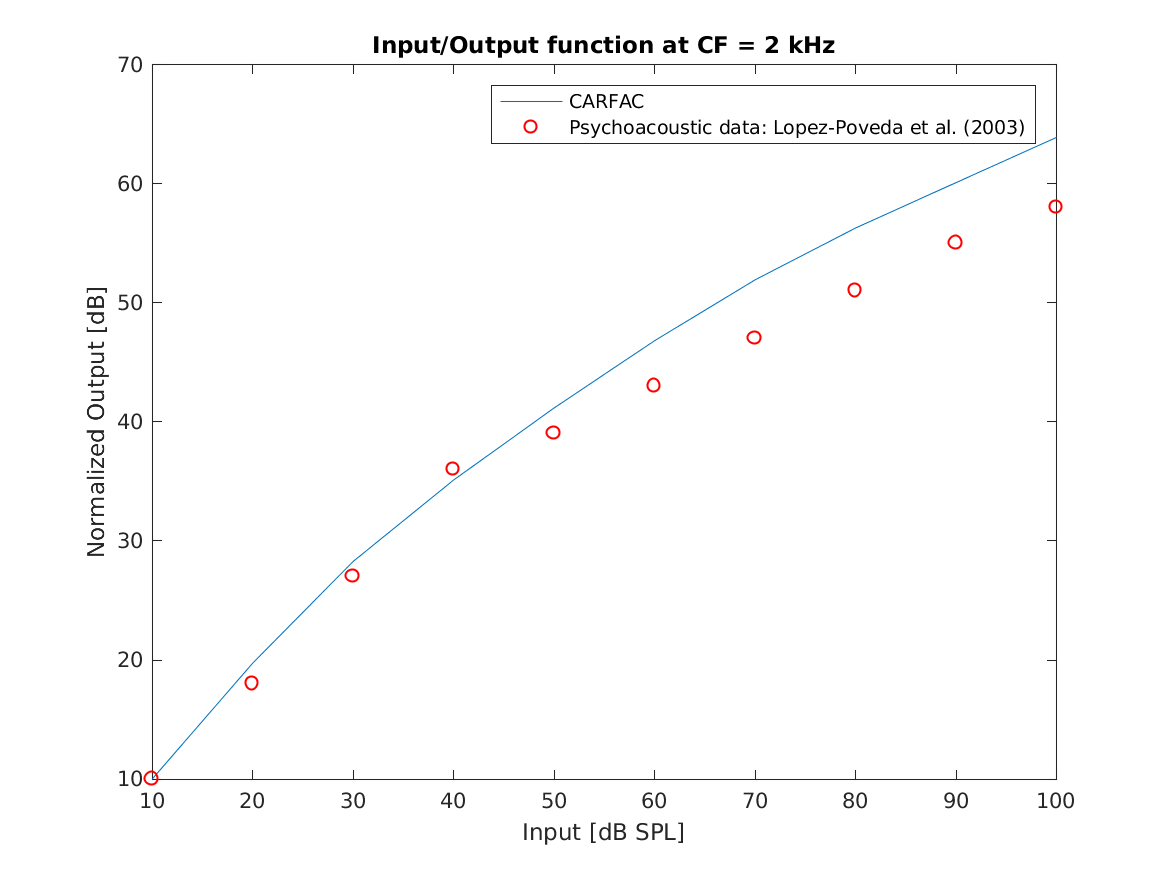

The Input-Output (I/O) functions at a center frequency of 2 kHz

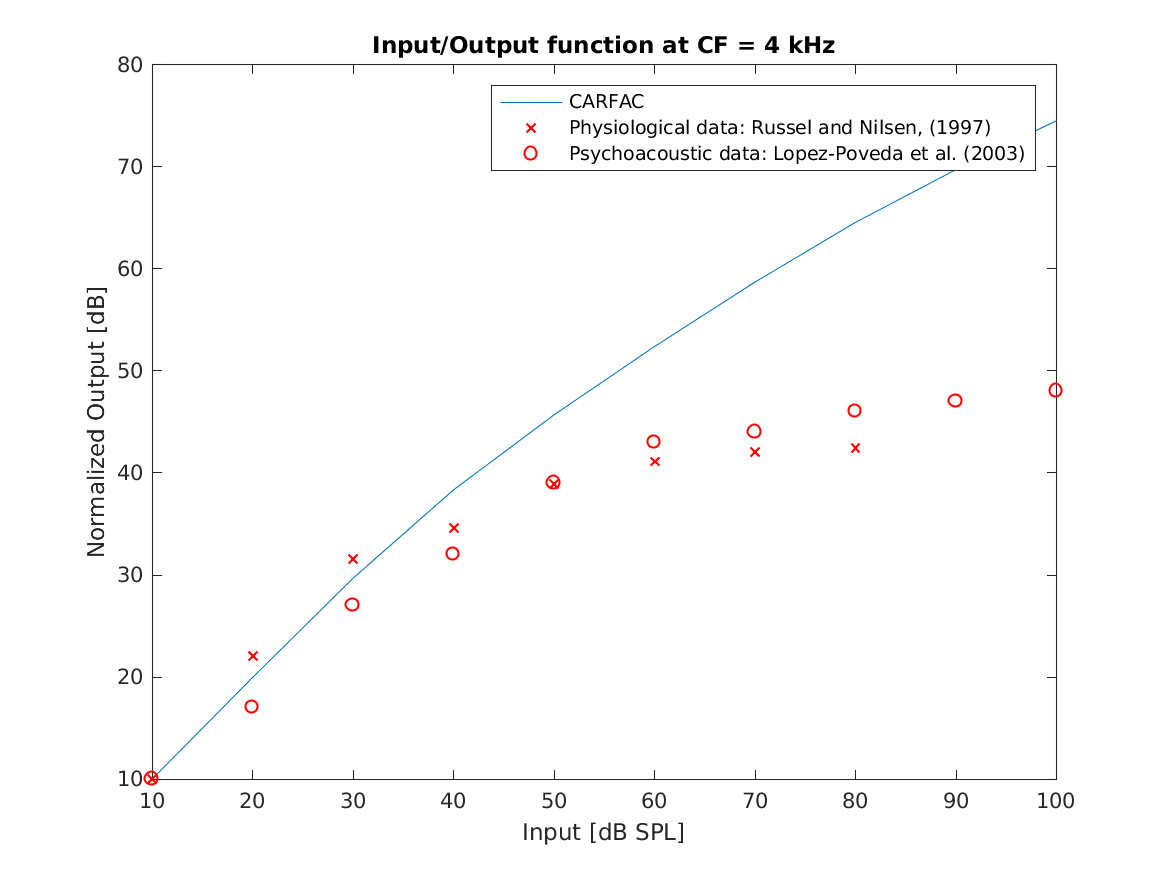

The Input-Output (I/O) functions at a center frequency of 4 kHz

This code produces the following output:

CF_IHC_params =

  struct with fields:

        just_hwr: 0
         one_cap: 1
    ac_corner_Hz: 20
         tau_lpf: 8.0000e-05
         tau_out: 5.0000e-04
          tau_in: 0.0100
        tau1_out: 5.0000e-04
         tau1_in: 2.0000e-04
        tau2_out: 1.0000e-03
         tau2_in: 0.0100
