Description

EXP_KELVASA2015(fig) computes data to produce corresponding figure number from the Kelvasa and Dietz 2015 paper.

Usage

[dataOut] = exp_kelvasa2015('fig8a')
[dataOut] = exp_kelvasa2015('fig8a','identifier','BTE','HRTFchannels',[3,4]);
[dataOut] = exp_kelvasa2015('fig8a',varargin);

The following flags can be specified;

'redo'	Recomputes data for specified figure
'plot'	Plot the output of the experiment. This is the default.
'no_plot'	Don't plot, only return data.
'fig5'	Reproduce Fig. 5.
'fig6'	Reproduce Fig. 6.
'fig8a'	Reproduce Fig. 8a.
'fig8b'	Reproduce Fig. 8b.
'fig9a'	Reproduce Fig. 9a.
'fig10'	Reproduce Fig. 10.
'fig12'	Reproduce Fig. 12.

Examples:

To display Fig. 5 use

exp_kelvasa2015('fig5');

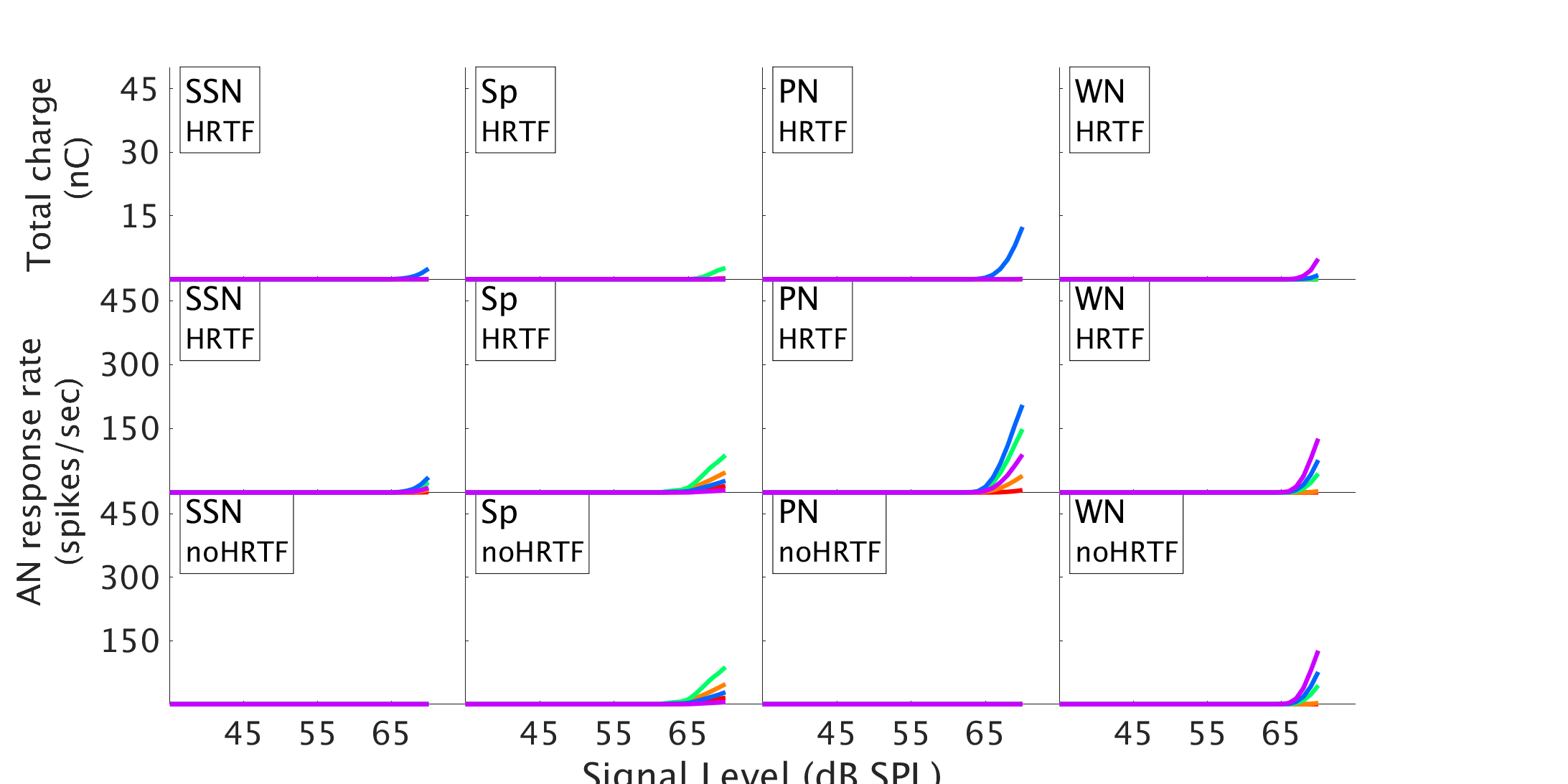

This code produces the following output:

Downloading /kelvasa2015/Kayser2009_Anechoic.sofa from http://www.sofacoustics.org/data/amt-1.0.0/hrtf

To display Fig. 6 use

exp_kelvasa2015('fig6');

To display Fig. 8a use

exp_kelvasa2015('fig8a');

To display Fig. 8b use

exp_kelvasa2015('fig8b');

To display Fig. 9a use

exp_kelvasa2015('fig9a');

To display Fig. 10 use

exp_kelvasa2015('fig10');

To display Fig. 12 use

exp_kelvasa2015('fig12');
